Madison Masonic Center | Madison, WI
Wangerin built organs similar in style and sound to E.M Skinner, Kimball and other builders of that era. They are colorful and warm, well-suited for orchestral and romantic music. In 1925, the Wangerin company built 3 organs for the Madison Masonic Temple (now referred to as the Madison Masonic Center) The main organ in the Auditorium is a 3-manual and Pedal with 5 divisions and about 40 ranks, the 2 Lodge organs are identical in stoplist with 2 manuals and pedal, 13 ranks. All 3 organs are in mostly original condition, but in varying states of disrepair. The Auditorium organ is about 70-80 percent functional, Lodge 2 organ is about 50 percent and Lodge 1 (while intact) is not playable at this time. Because of that, we have used stops from the Auditorium organ to recreate the Lodge organ. We have provided an extended version of the Auditorium organ, which adds a number of stops to give a bit more flexibility. All of these additions were done carefully, in the spirit of what was done on larger Wangerin organs of that time. If you are curious which stops were added, they are denoted on the stoplist by an asterisk *
Encryption
The samples are offered in 48kHz/24bit resolution. Hauptwerk 4.21 and higher required (incl. HW6/7). The sample set is in plain WAV format, and does not require an iLok activation code.
Reverb time
The reverb time is ca. 1.5~2 seconds.
Keyboards, pedalboard
The original compass of the keyboards is 61 notes. The original compass of the pedal division is 32 notes.
Requirements
RAM consumption
- 16-bit, other settings default: 2.7 GB
- 24-bit, other settings default: 5.2 GB
Swell
16 Bourdon
8 Open Diapason
8 Stopped Diapason
8 Viole d' Orchestre
8 Voix Celeste (TC)
4 Flauto Traverso
4 Violina
III Dolce Cornet
2 Flautino
16 Bassoon*
8 Oboe
8 French Horn
Tremulant
Swell to Swell 16, 4, Unison off
Echo to Swell 8
Pedal
32 Diapason Resultant
16 Open Diapason Major
16 Open Diapson Minor
16 Bourdon
16 Lieblich Gedakt
16 Contre Viole (CH)
8 Octave
8 Flute
8 Flute Dolce
8 Cello
32 Bass Trombone*
16 Trombone
8 Trumpet*
Great to Pedal 8, 4
Swell to Pedal 8, 4
Choir to Pedal 8
Echo to Pedal 8
Great
16 Double Open Diapason
8 First Open Diapason
8 Second Open Diapason
8 Doppelflote
8 Gambe
8 Clarabella
4 Harmonic Flute
22/3 Quinte
2 Principal
IV Mixture
16 Trombone*
8 Trumpet
Chimes (Echo)
Harp (Choir)
Great to Great 16, 4
Swell to Great 16, 8, 4
Choir to Great 16, 8 4
Echo to Great 8
Echo
8 Fernflote
8 Salicional*
8 Salicional Celeste*
8 Cor Anglais
8 Vox Humana
Tremulant
Choir
16 Contre Viole
8 Geigen Principal
8 Concert Flute
8 Flute Celeste8
8 Dulciana
4 Flute d'Amour
2 Piccolo
8 Clarinet
8 Tuba
Harp
Tremulant
Choir to Choir 16, 4 Unison off
Echo to Choir 8
Swell to Choir 16,8,4
*Stops that have been added using existing material (revoiced or borrowed)

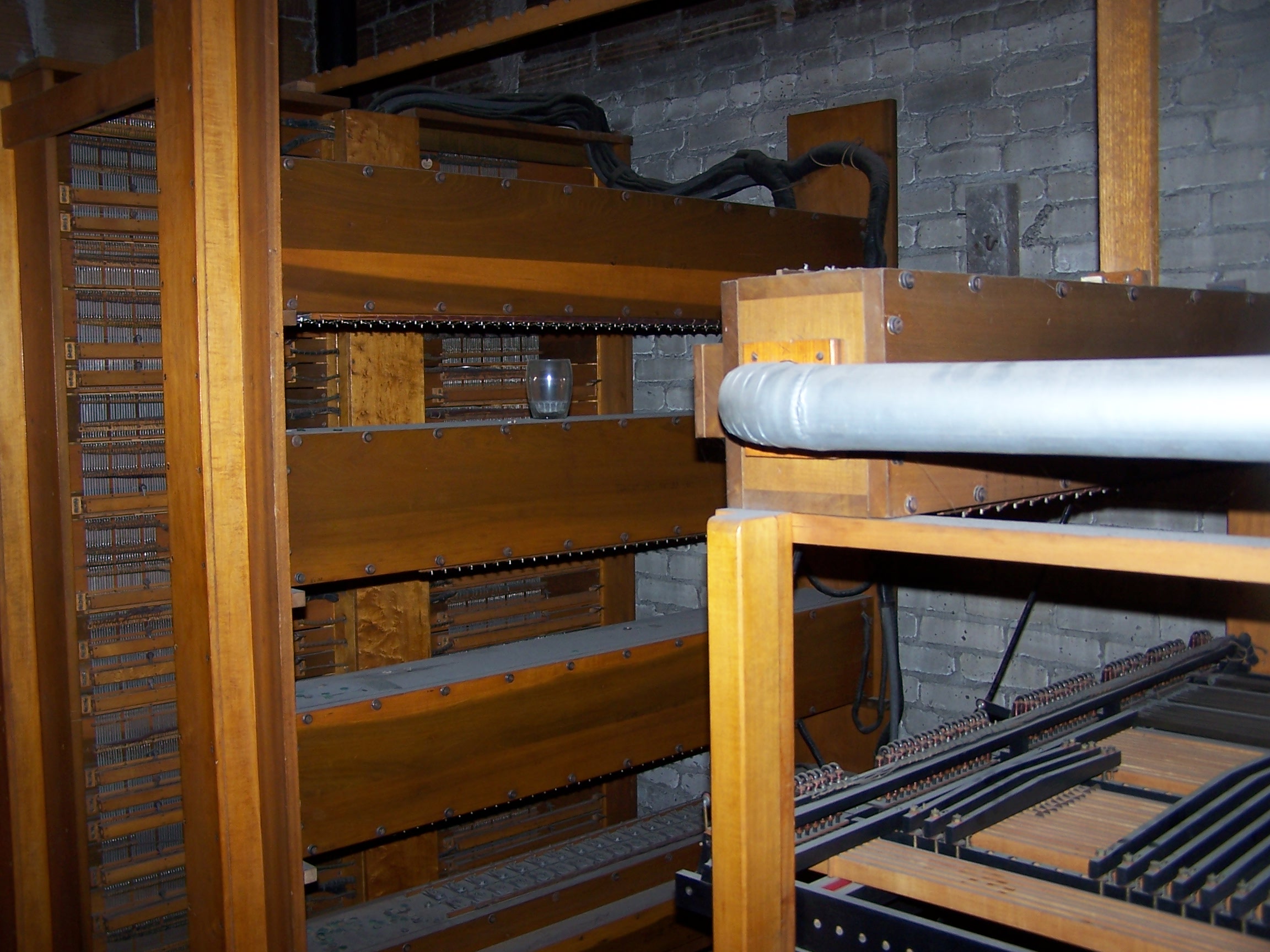

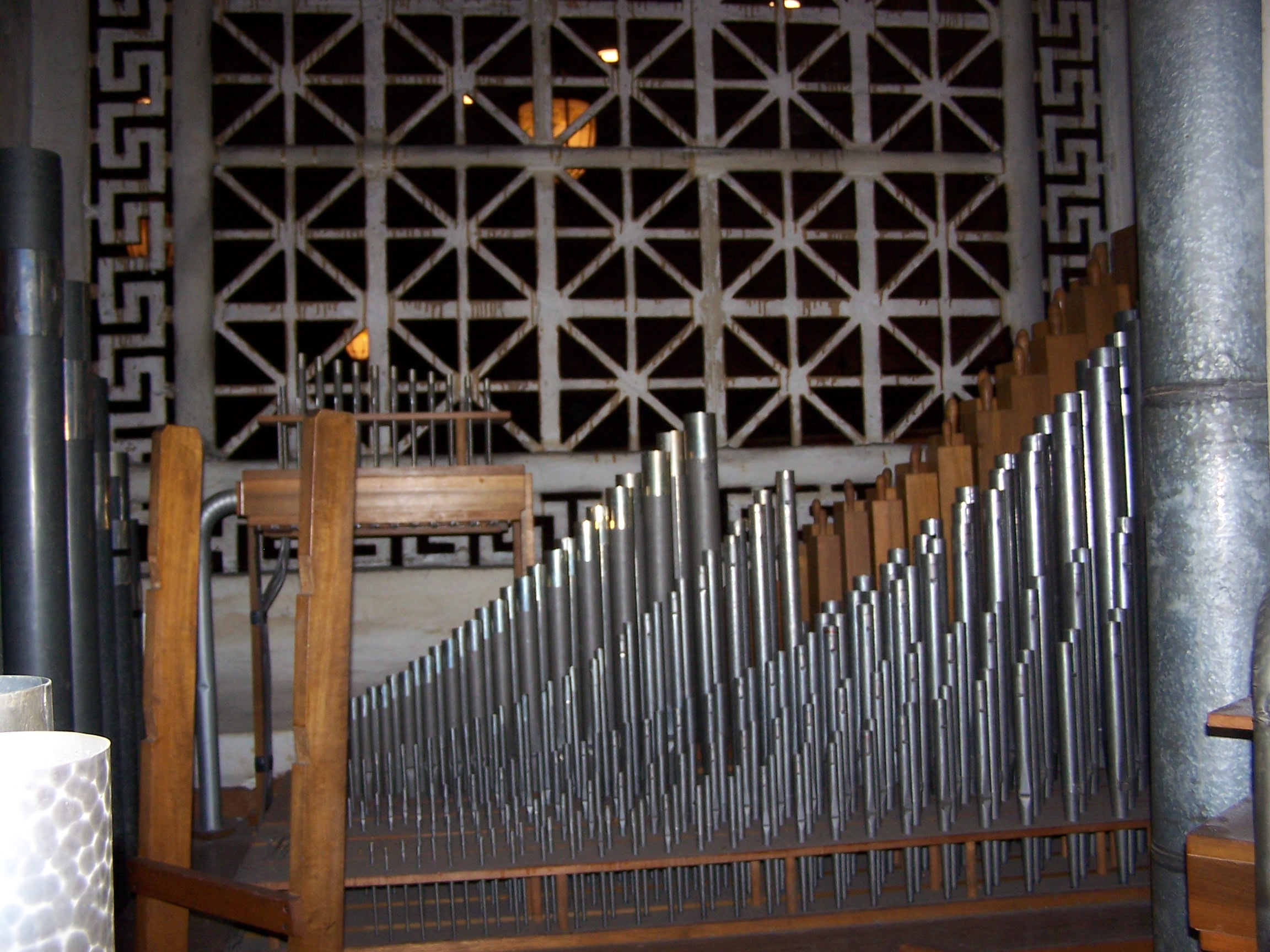

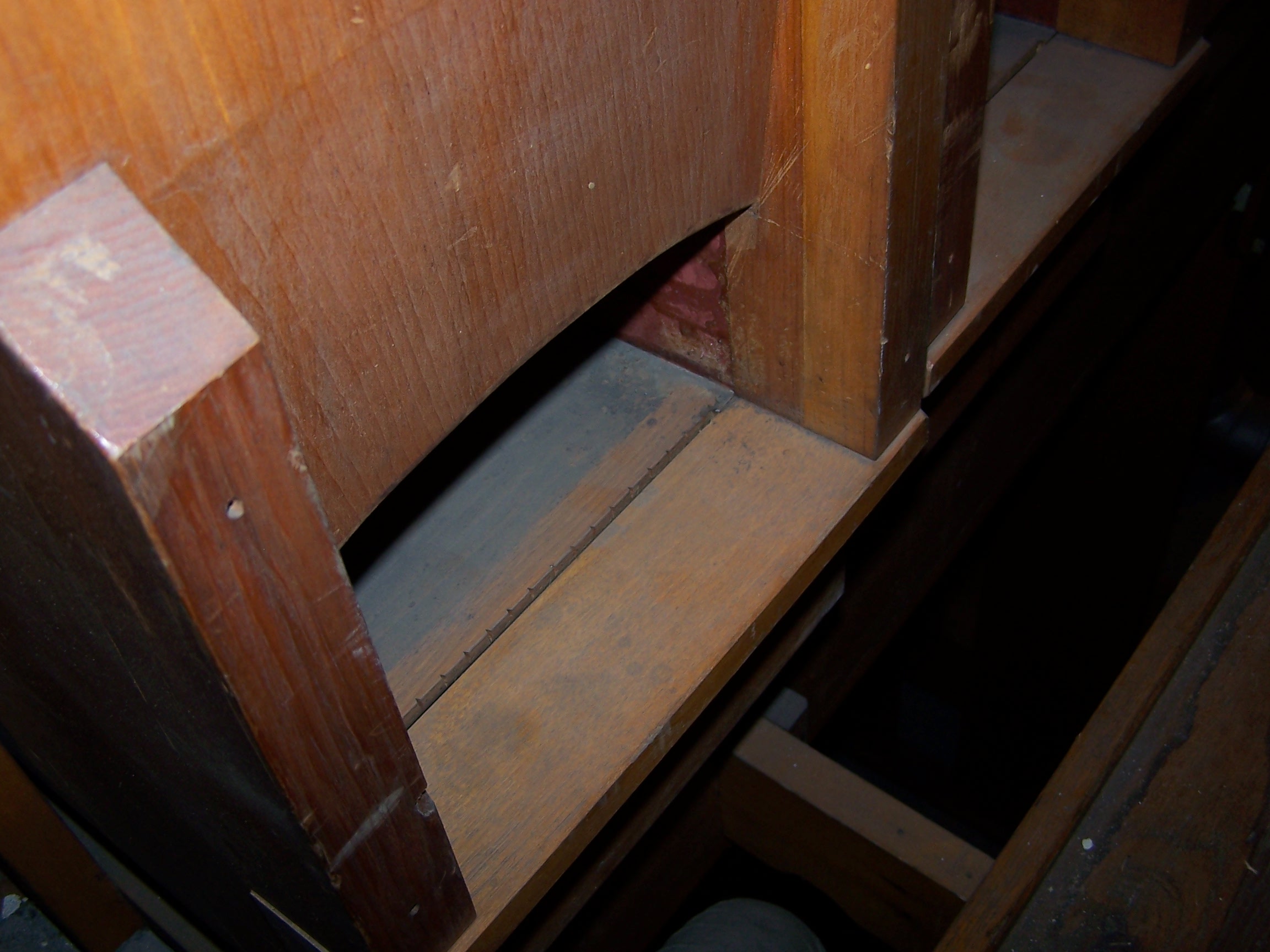

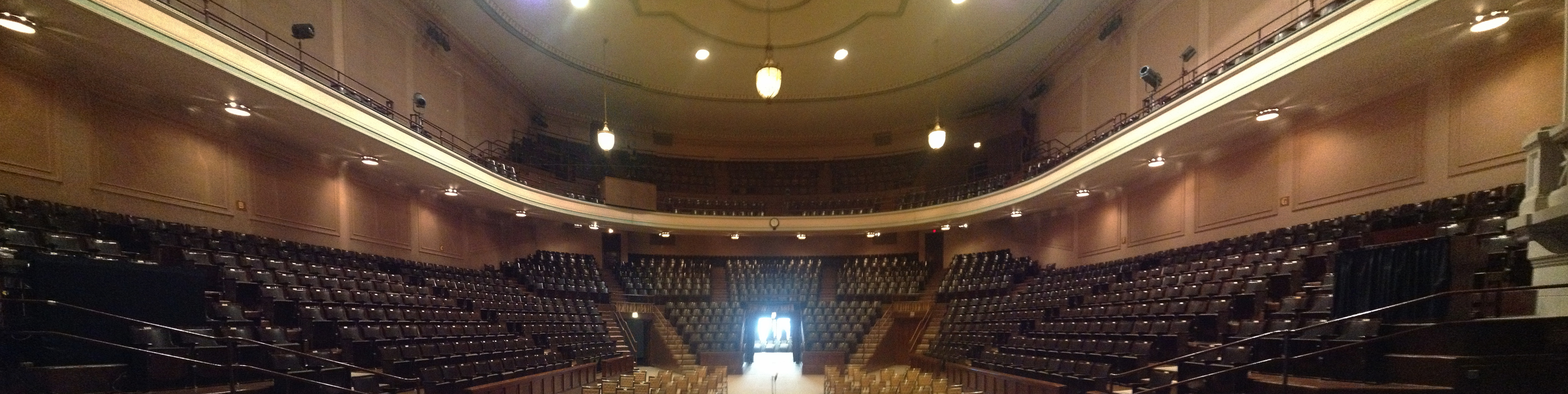

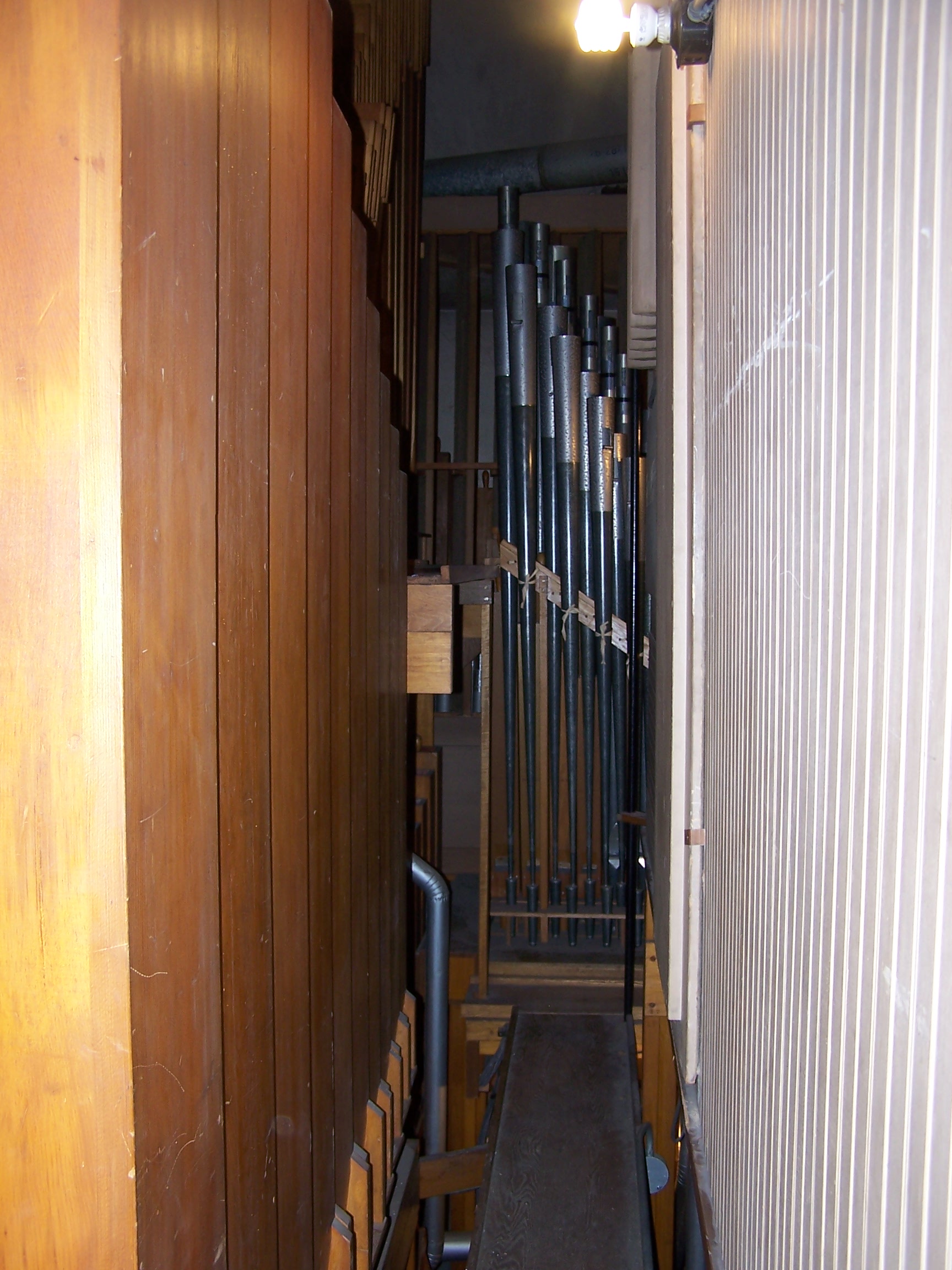

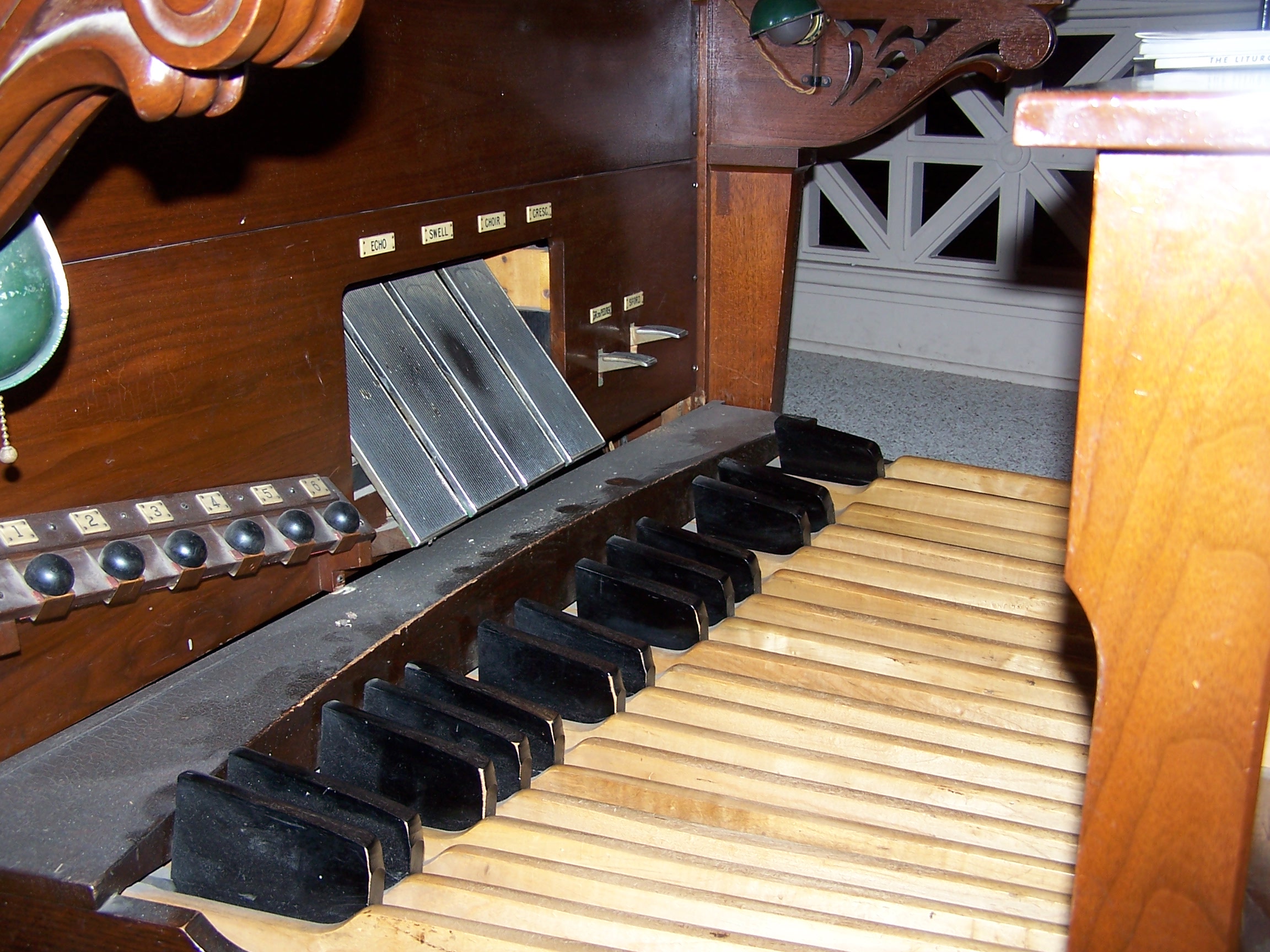

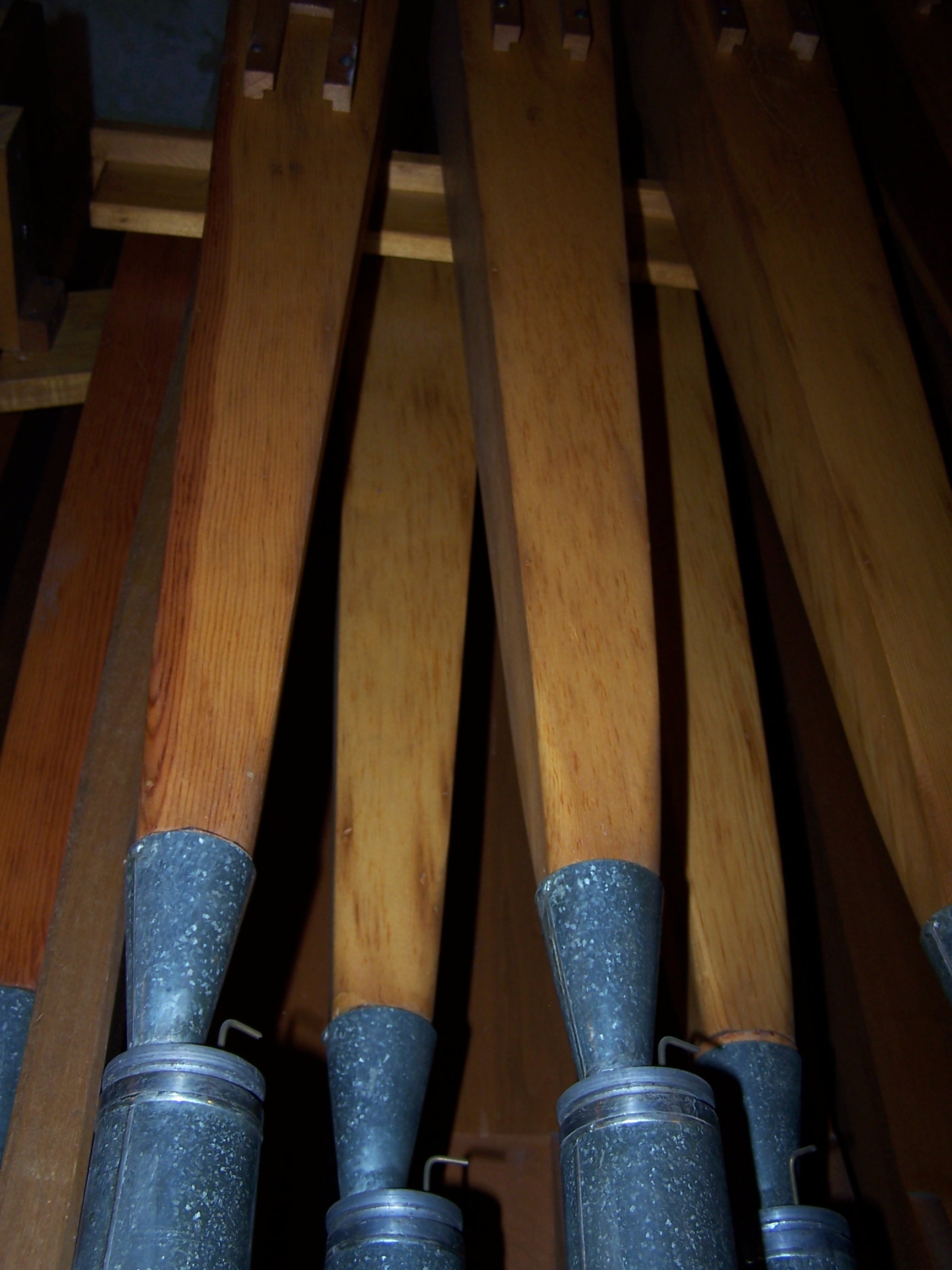

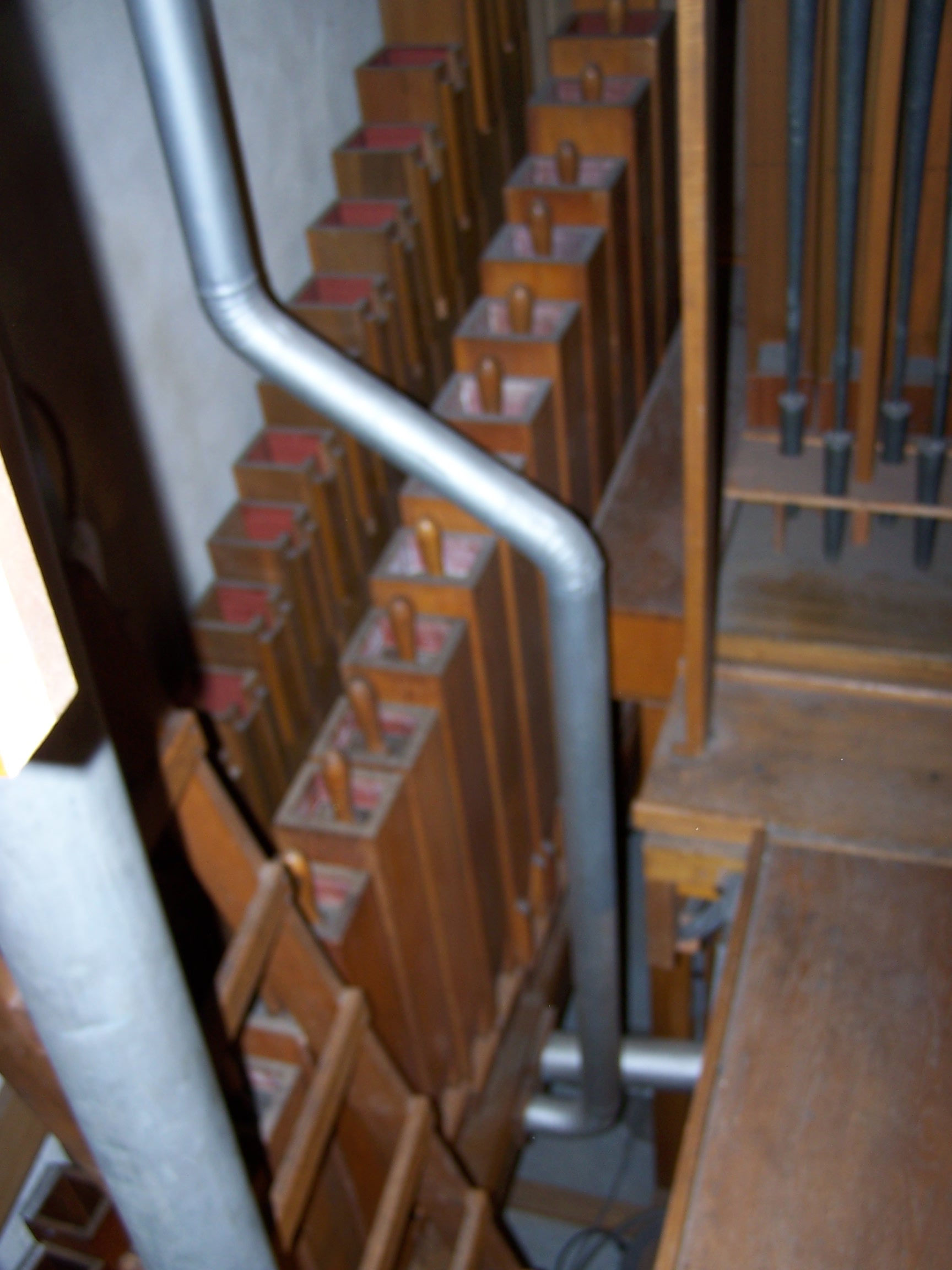

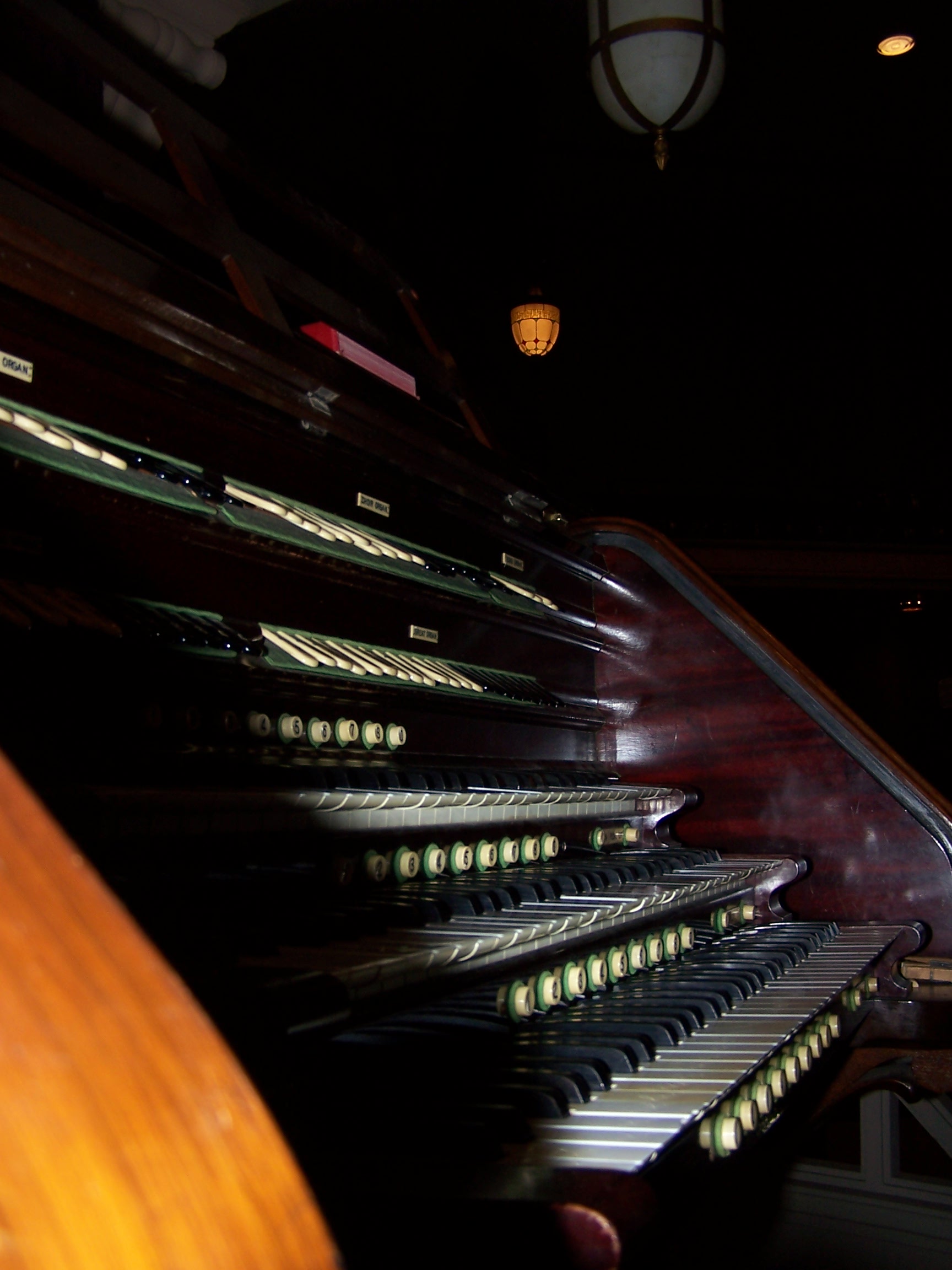

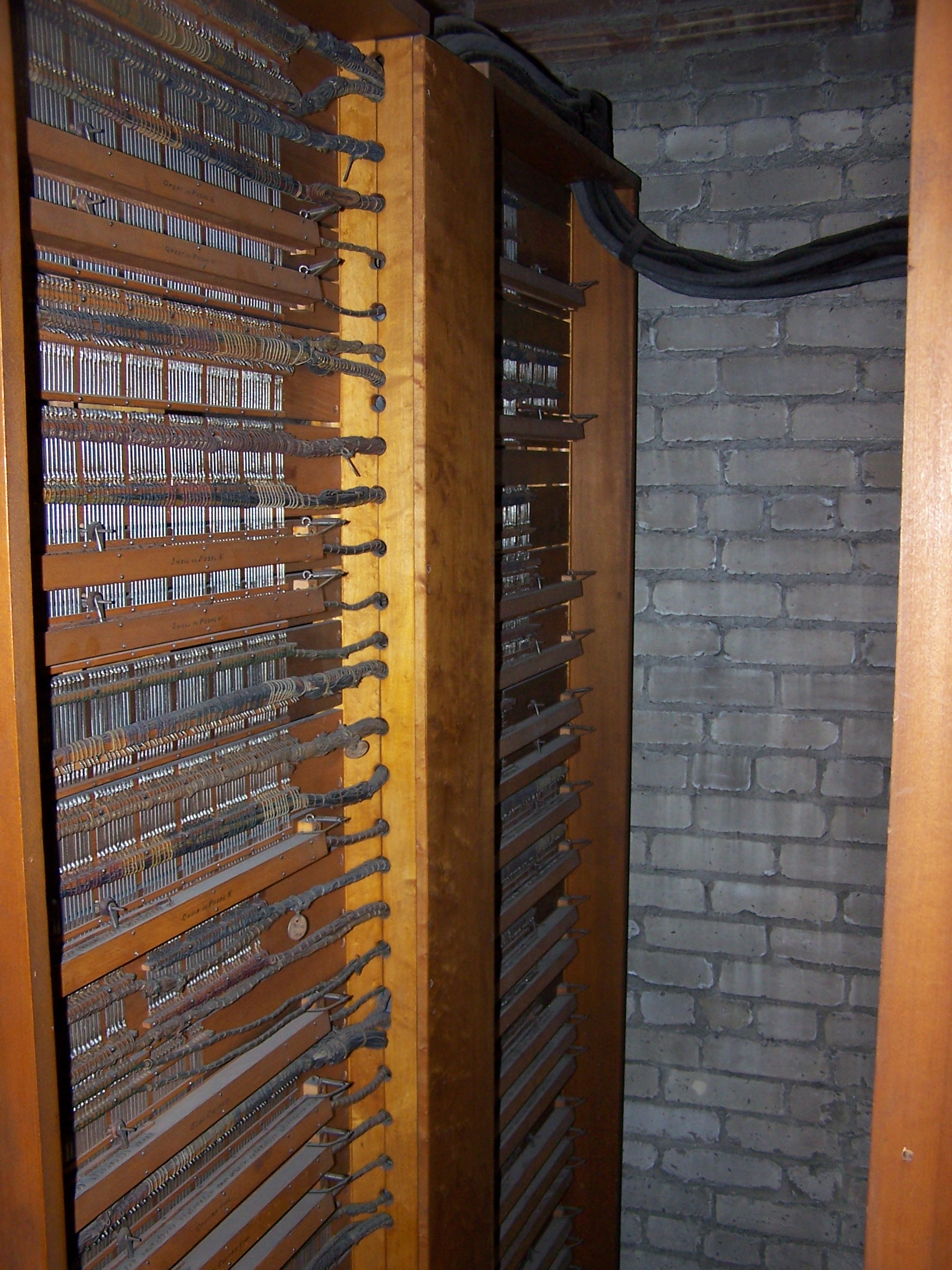

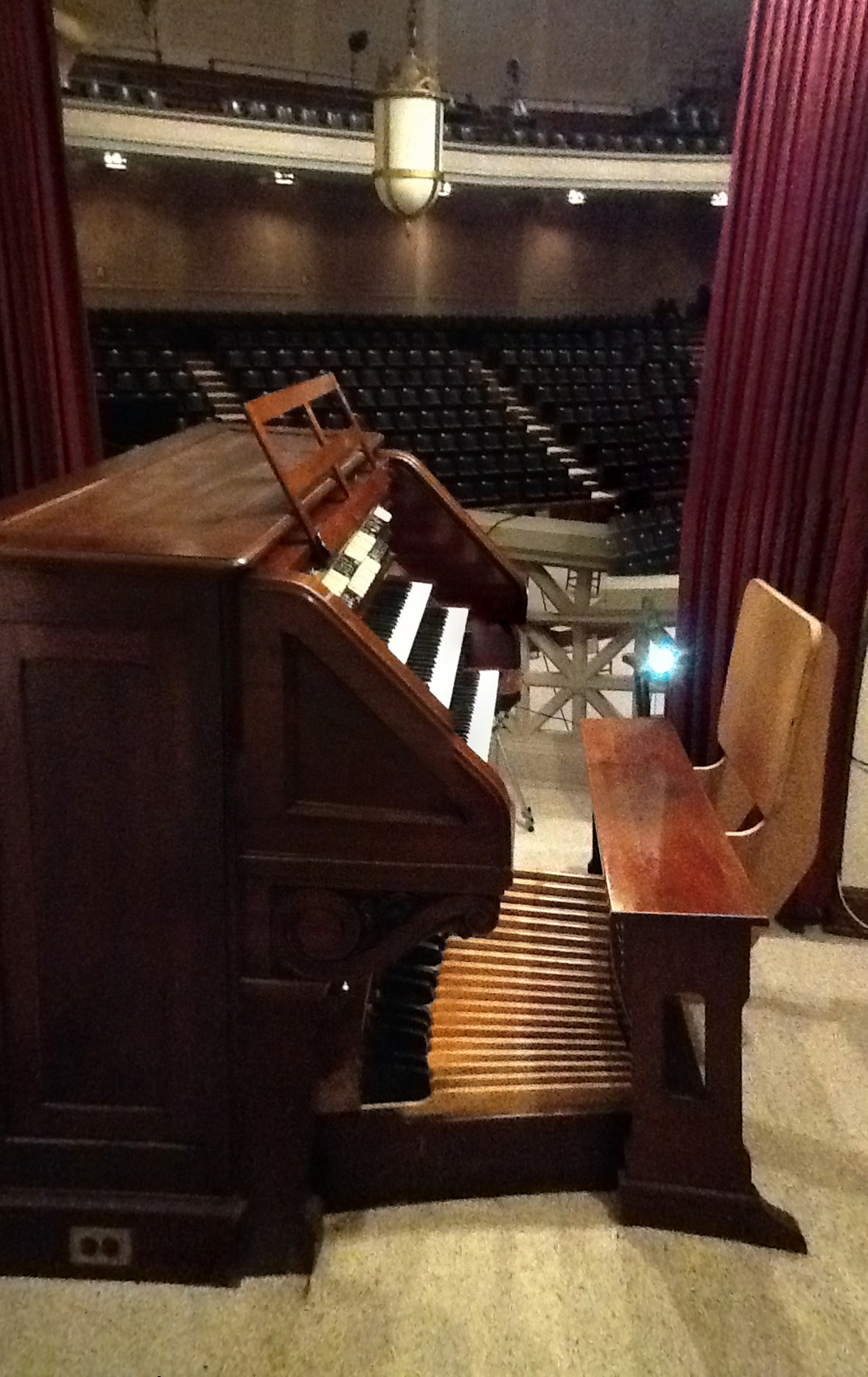

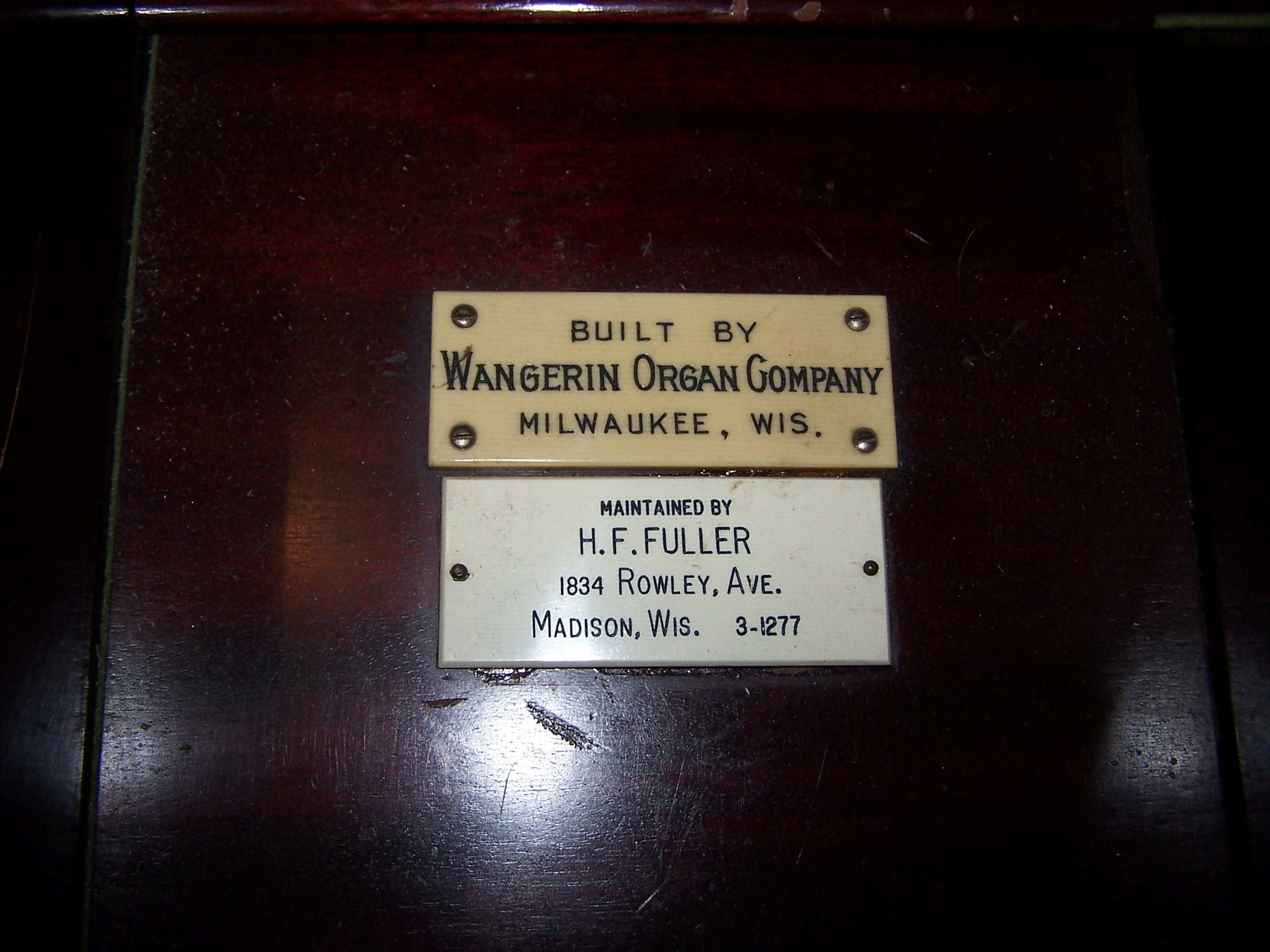

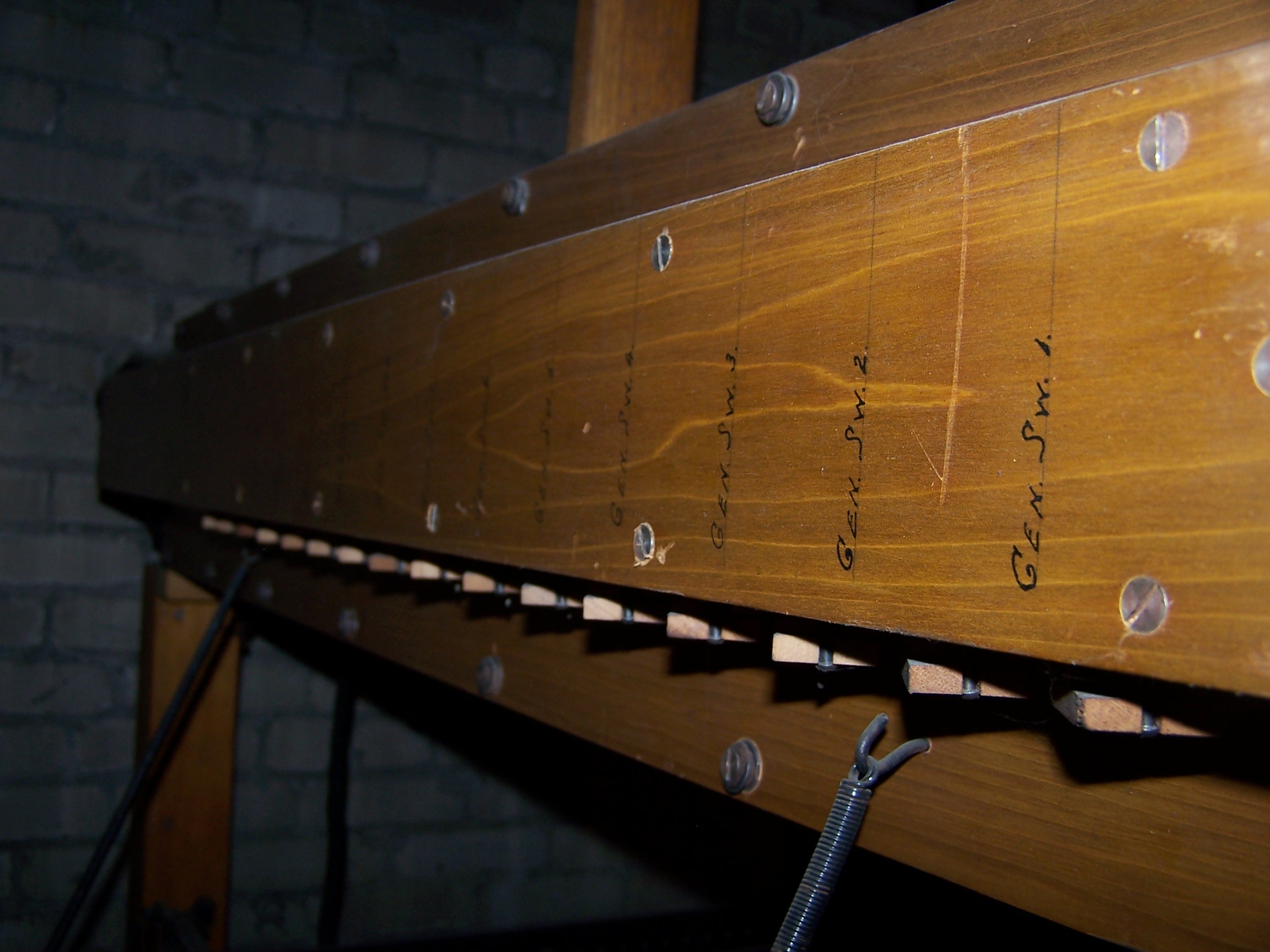

Slide Show - venue, organ and chamber pictures
